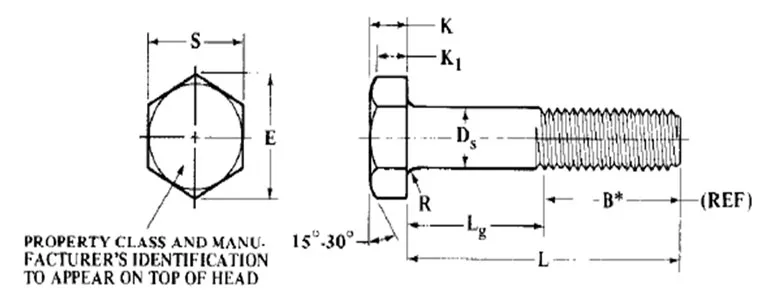

| Nominal Bolt Diameter, D, and Thread Pitch | Body Diameter Ds | Width Across Flats, S | Width Across Corners, E | Head Height, K | Wrenching Height, K1 | ||||
|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Max | Min | Max | Min | Min | |
| M12 x 1.75 | 12.70 | 11.30 | 21.00 | 20.16 | 24.25 | 22.78 | 7.95 | 7.24 | 5.2 |
| M14 x 2 | 14.70 | 13.30 | 24.00 | 23.16 | 27.71 | 26.17 | 9.25 | 8.51 | 6.2 |
| M16 x 2 | 16.70 | 15.30 | 27.00 | 26.16 | 31.18 | 29.56 | 10.75 | 9.68 | 7.0 |
| M20 x 2.5 | 20.84 | 19.16 | 34.00 | 33.00 | 39.26 | 37.29 | 13.40 | 12.12 | 8.8 |
| M24 x 3 | 24.84 | 23.16 | 41.00 | 40.00 | 47.34 | 45.20 | 15.90 | 14.56 | 10.5 |
| M20 x 3.5 | 30.84 | 29.16 | 50.00 | 49.00 | 57.74 | 55.37 | 19.75 | 17.92 | 13.1 |
| M36 x 4 | 37.00 | 35.00 | 60.00 | 58.80 | 69.28 | 66.44 | 23.55 | 21.72 | 15.8 |
All dimensions are in millimeters.
Basic thread lengths, B, are same as given in table 12 of ASME B18.2.3.6M.
For additional manufacturing and acceptance specification, reference should be made to ASME
B18.2.3.6M-1979, R1989 standard.
